Adobe PDF IFilter Indexing with SharePoint 2010

This note explains how to enablePDF indexing using the Adobe IFilter version 9.0 in Microsoft SharePoint 2010.
  1. Download PDF icon picture from Adobe web site  name it ex: pdf16.gif  and copy to C:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\14\TEMPLATE\IMAGES\
  2. Add the following entry in docIcon.xml file, which can be found at: C:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\14\TEMPLATE\XML
    <Mapping Key=”pdf” Value=”pdf16.gif” />

Now add PDF as a file type:

  • Run Central Administration.
  • Click Manage service applications under “Application Management”:
  • Click the Search Service Application link in the list of applications.
  • Click File Types  under “Crawling” in the left navigation area:
  • Click New File Type.

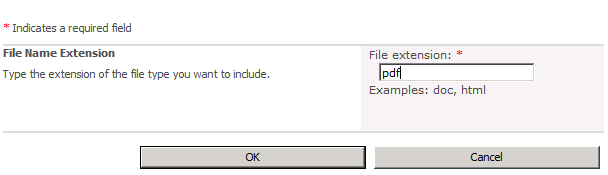

  • Enter pdf for the “File Name Extension” and click OK.
  • Using Regedit on the server, navigate to


  •  Right-click the Filters  folder and select New Key. Enter “.pdf” for the key value.
  • Add the following values to this key:

<REG_SZ> Default =<value not set>
<REG_SZ> Extension = pdf
<REG_DWORD> FileTypeBucket = 1
<REG_SZ> MimeTypes = application/pdf
The key should look like:

  • Navigate to: \HKEY_LOCAL_MACHINESOFTWAREMicrosoftOffice Server14.0SearchSetupContentIndexCommonFiltersExtension
  •  Right-click the Filters  folder and select New Key. Enter “.pdf” for the key value.
  • Set the “default” value to {E8978DA6-047F-4E3D-9C78-CDBE46041603}

The key should look like:

You can now add an image to beused for the icon for PDF documents:

  • Add an image (typically gif or png, use Google images to find an example) for the PDF icon to the folder:

C:Program FilesCommonFilesMicrosoft SharedWeb Server Extensions14TEMPLATEIMAGES

  •  Open the file docicon.xml from the location:

C:Program FilesCommonFilesMicrosoft SharedWeb Server Extensions14TEMPLATEXML

  •  Add a link to map the pdf extension to the image by adding a link like the following to the ByExtension element:

<Mapping Key=”pdf” Value=”pdf_icon.gif” OpenControl=””/>

  •  Finally, issue an IISReset and restart the Windows services “SharePoint Foundation Search V4” and “SharePoint Server Search 1”.
