Enabling Custom Backgrounds



This feature is disabled by default, so you’ll have to enable it from the Registry Editor. You can also use the Group Policy Editor if you have a Professional version of Windows – scroll down a bit for the Group Policy Editor method.

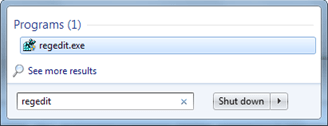

Launch the Registry Editor by typing regedit into the search box in the Start menu and pressing Enter.

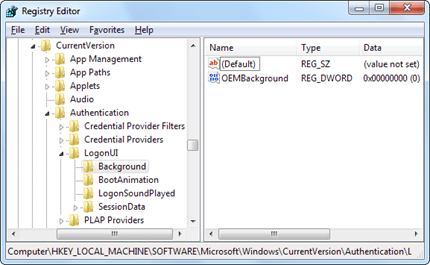

In the Registry Editor, navigate to the following key:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Authentication\LogonUI\Background


You’ll see an DWORD value named OEMBackground. If you don’t see it, right-click in the right pane, point to the New submenu and create a new DWORD value with this name.

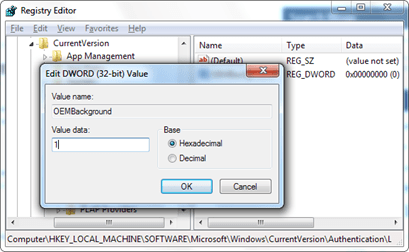

Double-click the OEMBackground value and set its value to 1.


Note that selecting a new theme in the Appearance and Personalization window will “unset” this registry value. Selecting a theme will change the value of the key to the value stored in the theme’s .ini file, which is probably 0 – if you change your theme, you’ll have to perform this registry tweak again.


Changing the setting in group policy will allow it to persist even when you change your theme, but the Group Policy Editor is only available in Professional editions of Windows.

If you have access to the Group Policy Editor, launch gpedit.msc from the Start menu.


Navigate to the following section in the Group Policy Editor window:

Computer Configuration\Administrative Templates\System\Logon

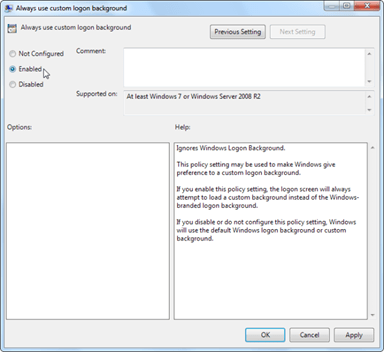

You’ll find a setting named “Always use custom login background.” Double-click it and set it to Enabled.


Setting An Image

Your image file must be less than 256 KB in size. It’s also a good idea to use an image file that matches the resolution of your monitor, so it won’t look stretched.

Windows looks for the custom logon screen background image in the following directory:

C:\Windows\System32\oobe\info\backgrounds

By default, the info and backgrounds folders don’t exist. Navigate to the C:\Windows\System32\oobe folder and create them yourself by right-clicking inside the folder, pointing to New, and selecting New Folder.

Copy your desired background image to the backgrounds folder and name it backgroundDefault.jpg.


(I can see the inevitable question coming in the comments, so if you like this wallpaper image, you can get it here.)

The change will take effect immediately – no system reboot required. The first time you log out or lock your screen (try the WinKey-L keyboard shortcut), you’ll ee your new background.

Third-Party Tools

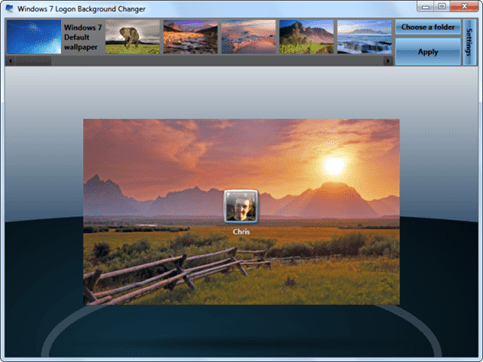

You don’t have to do this by hand. There are a variety of third-party tools that automate this process for you, like Windows Logon Background Changer, which we’ve covered in the past. Windows Logon Background Changer and other utilities just change this registry value and put the image file in the correct location for you.
